LED Bulbs Upgrade Kit for 2011-2016 Ford F250
For 2011 2012 2013 2014 2015 2016 Ford F250, the kit including forward lighting high and low beam, fog light, front/rear turn signal, front/rear side marker, brake light, back up light, license plate light, and dome light couldn't be more suitable. Even when driving at night, sufficient safety can be guaranteed. It’s a great safety feature for night driving especially in bad weather.
LED Bulbs replacement model & technical specifications
Package Included:
- 4 Y13 Series H13/9008 led headlight bulbs (High & Low Beam)
- 2 I9 Series H10 led bulbs (Fog Light)
- 2 3157 Amber/White (Front Turn Signal)
- 2 Load Resistors (For Front Turn Signal)
- 2 T10 Amber (Front Side Marker)
- 2 3157 Amber (Rear Turn Signal)
- 4 3157 Red (Rear Side Marker & Brake Light)
- 2 T15 White (Back up)
- 2 T10 White (License Plate Lights)
- 4 41mm (Dome Lights)

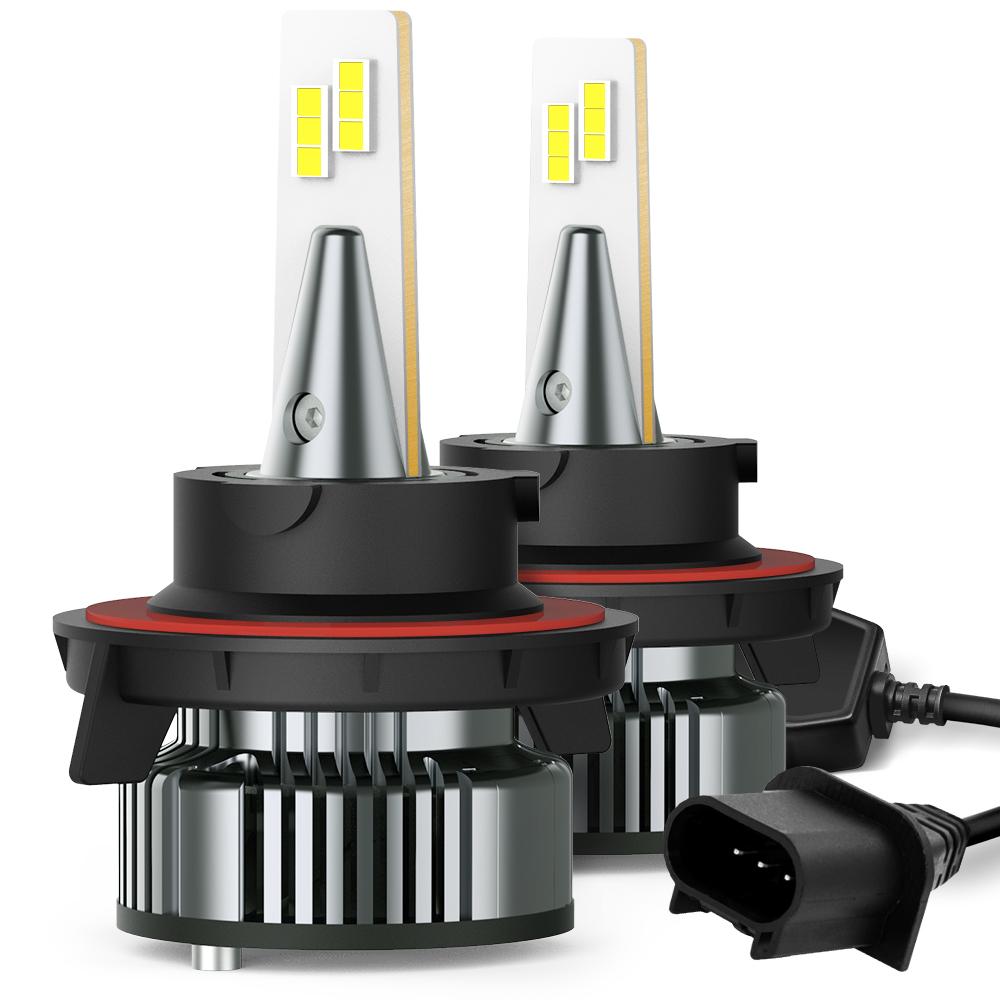

H13/9008 led headlight bulbs (High & Low Beam)
- Model: H13/9008 (2pcs)
- Voltage: DC12V-24V
- Lumen: 16,000LM/pair
- Current: 3A
- Power: 80W/pair
- Light source: LMP
- Color Temp: 6500K white
- Life: >50,000 hrs

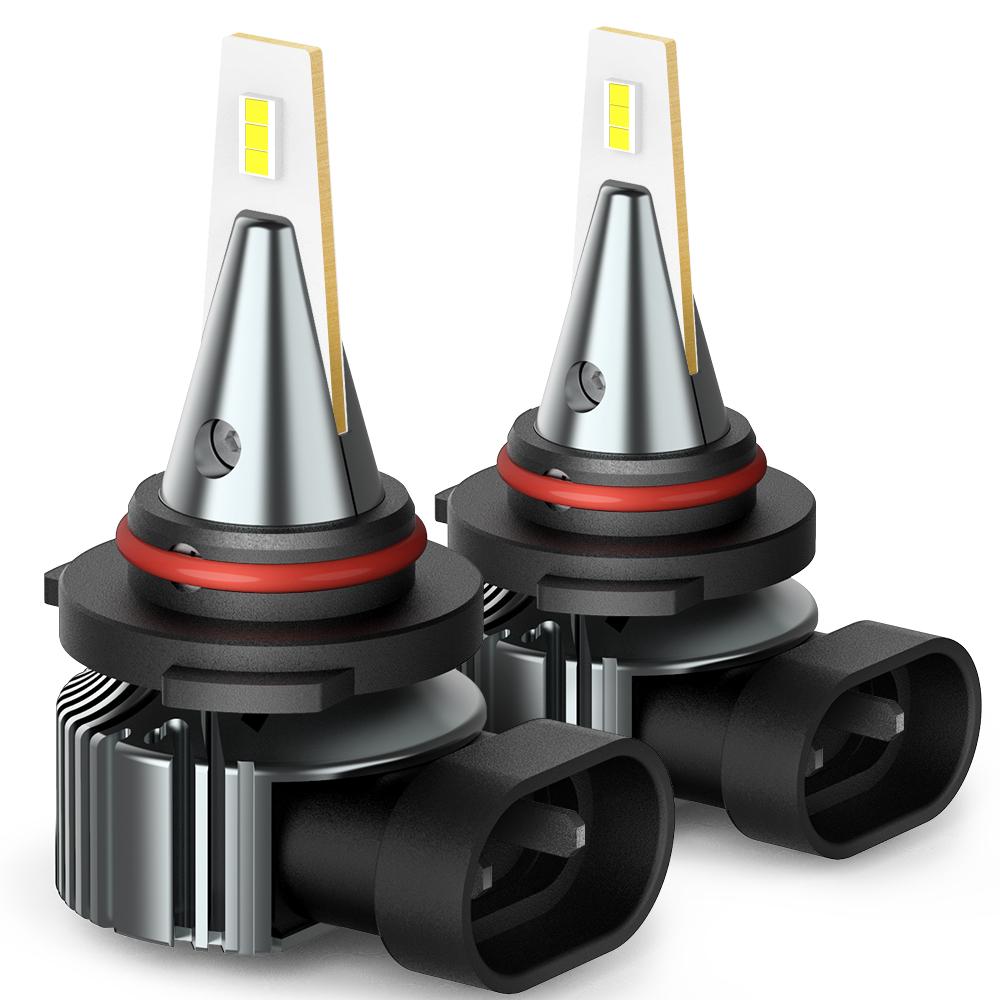

H10 led bulbs (Fog Light)
 | - 2000lm/bulb, 4000lm/set3 times brighter than halogen bulbs
- 6500K white CSP led chips
- LED bulb and original halogen bulb 1:1 same light filament position
- DC 9-30v wide voltage, IP65 waterproof
- Plug & Play, Non-polarity plugs, mini-sized body
|

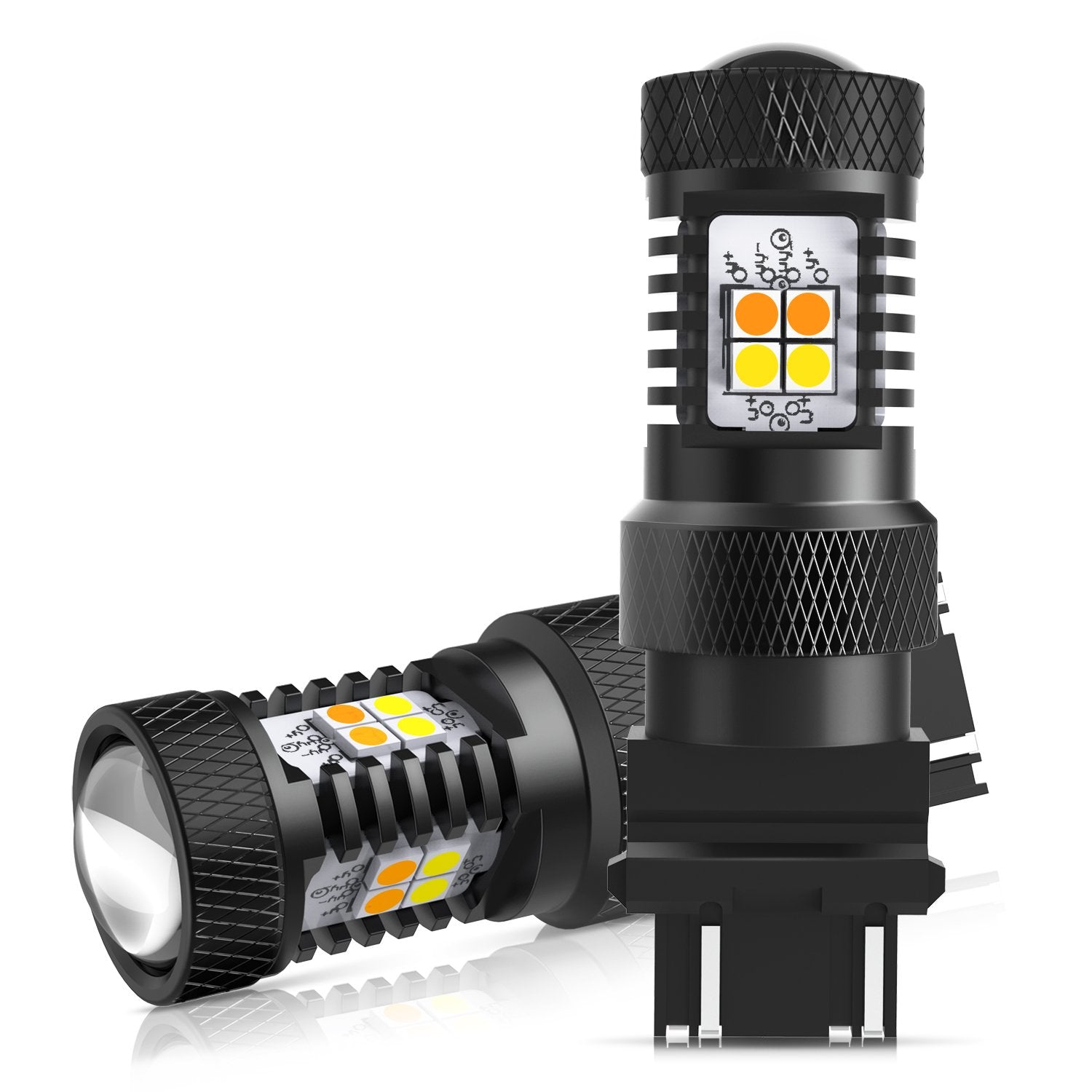

3157 Front Turn Signal, Switchback
- Voltage: DC 9-18V
- Power: 8.4W
- LED Type: 16pcs 3030SMD
- Color: Amber Yellow
- Socket Type: Compatible with both CK and US standard sockets
The turn signal flashes "amber-off-amber-off" instead of "amber-white-amber-white" much easier to see.
Dual function: These will only work for dual function lights that have both the parking/city light and turn signal function in one bulb

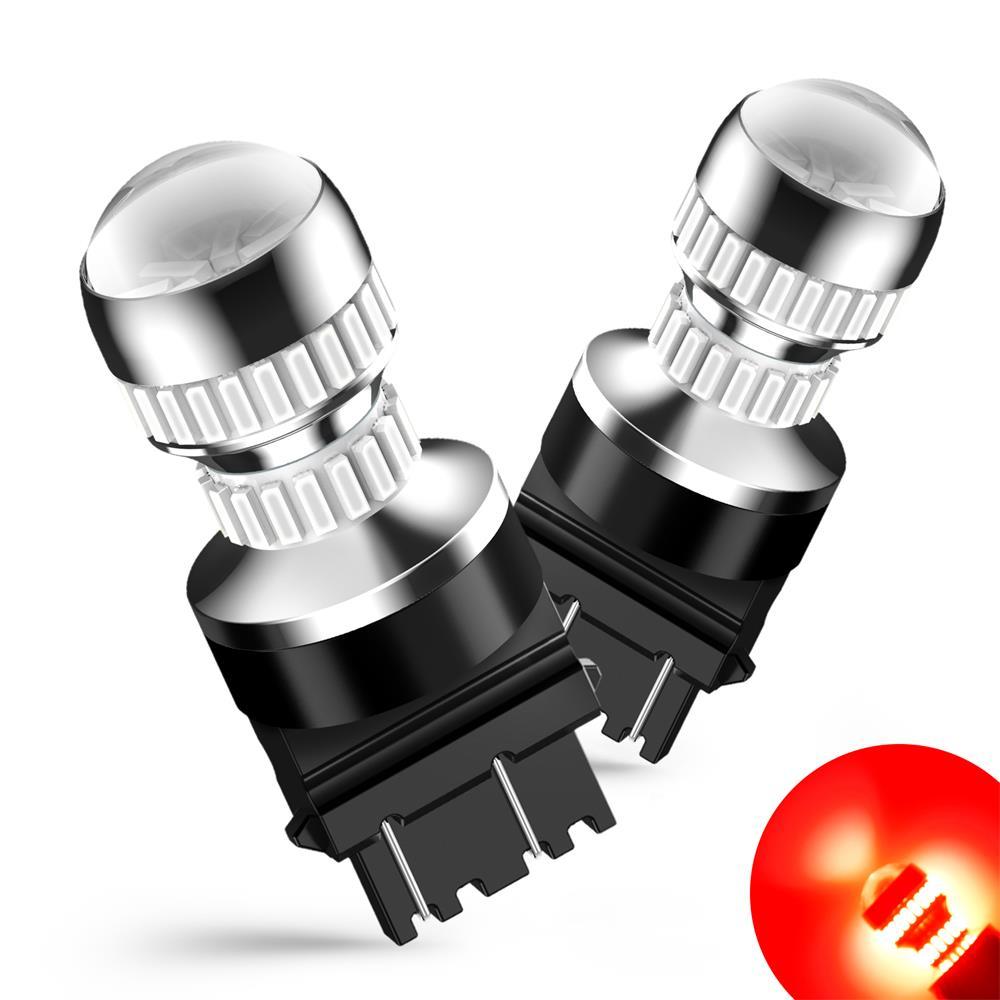

3157 Brake Light/ Rear Side Marker
- Color: Red
- Working Voltage: DC9V-16V (Fits 12V Vehicles)
- Current:0.45A
- Power: 5.5W
- LED Chip Type:54 pieces 4014 SMD
- Application: Used for upgrading stock dim 3156/3157 turn signal light rear/front, side marker light, etc.
T15 Back Up Light
- Color: 6000K White
- Lumen: 2600lm/Pair
- Working Voltage: DC12V
- Working Power: 5.5W
- Current: 0.45A
- LED Chip: 4014 SMD
- Application: Backup Lights

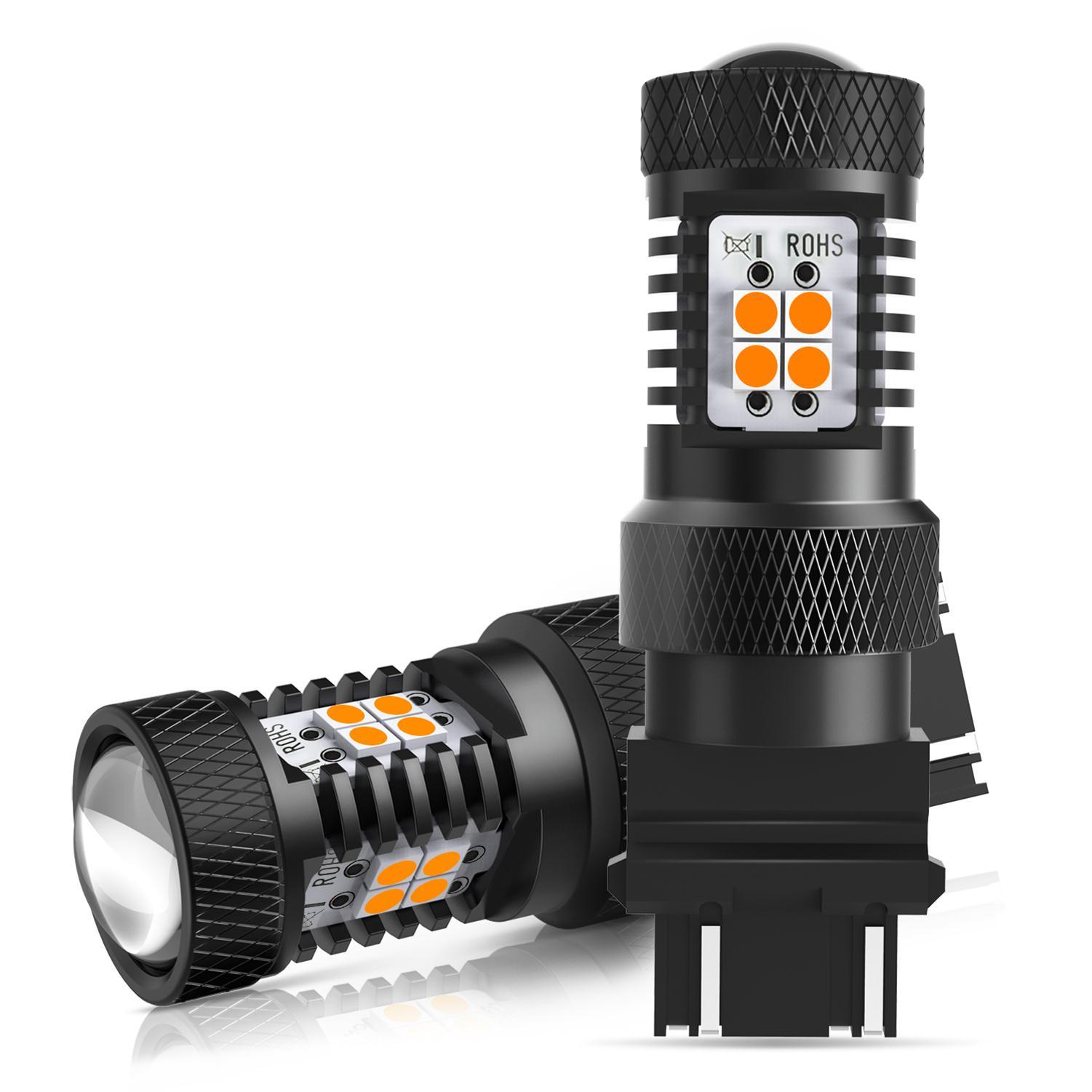

3157 Rear Turn Signal, Amber- Color: Amber
- Voltage: DC 9-18V
- Power: 8.4W
- LED Type: 14pcs 3030SMD
| 168/194 Front Side Marker, Amber- Color: Amber Yellow
- Voltage: 12V
- Power: 2W/pc
- LED Chip Type: 24pcs 3014SMD
|

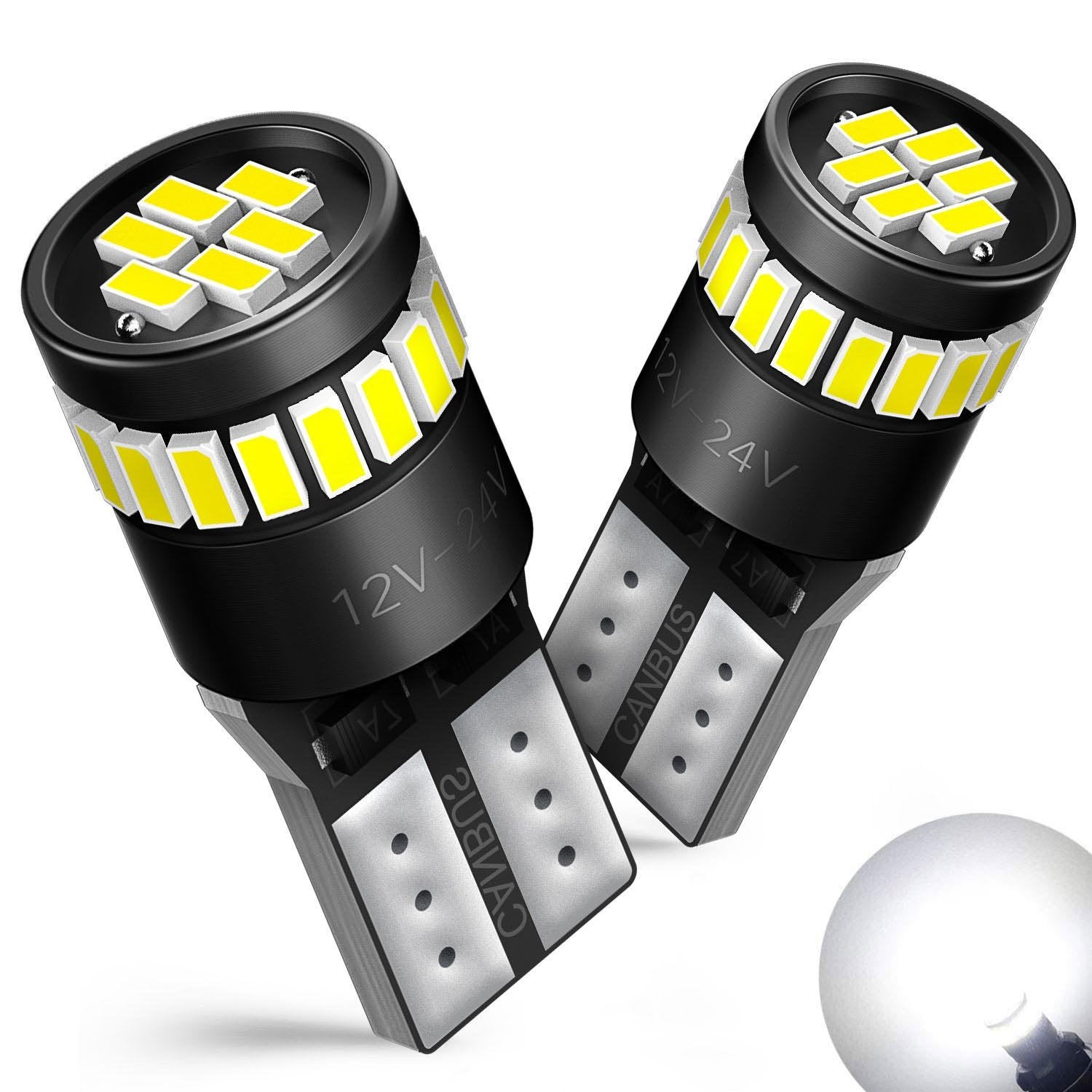

T10 License Plate Lights, White- Color: White
- Working Voltage: 12V
- Power: 2W/pc
- LED Chip Type: 24pcs 3014SMD

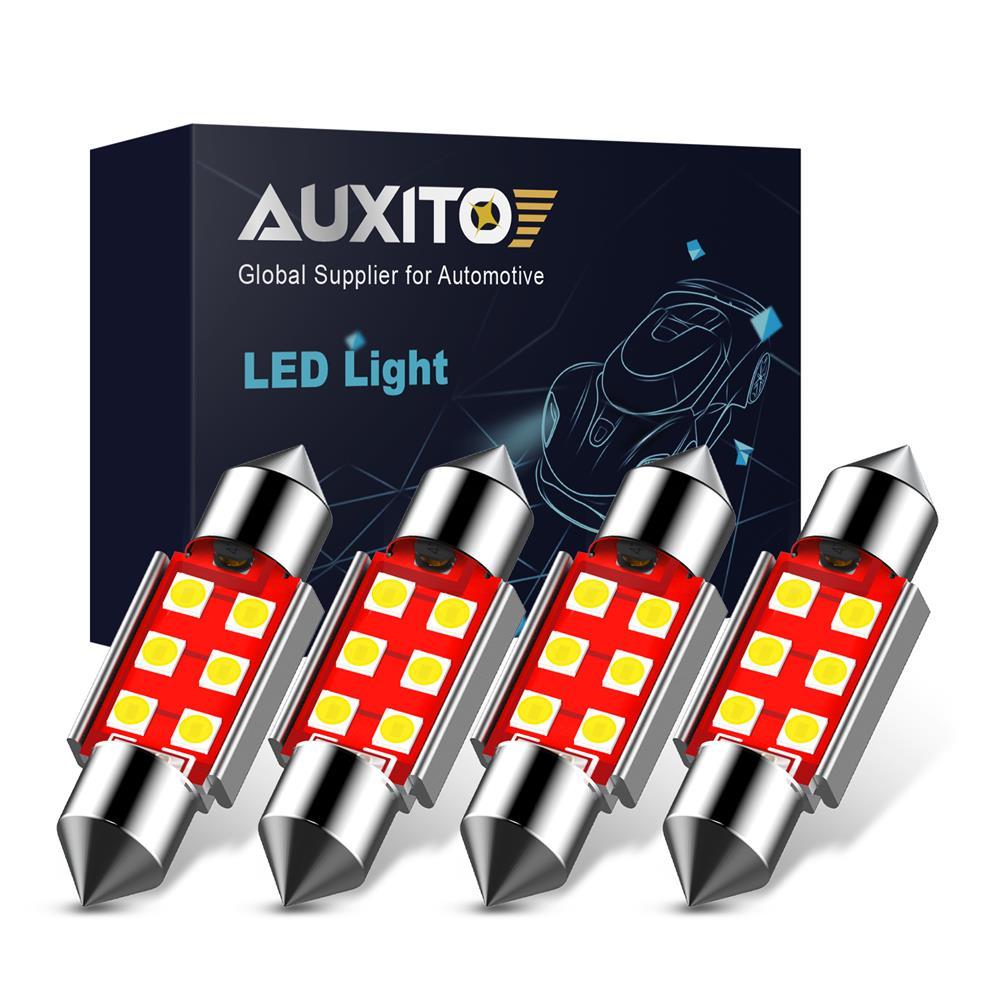

| 41mm Dome Lights- Color: 6000K xenon white
- Voltage: DC 10-30V
- Power: 2W/pc
- Cross-reference number: 560, 578, 211-2, 2112, 212-2, 2122, 2142, 214-2 etc.
|
If you need the other LED bulbs, please check the model user manual or contact us by mail at [email protected]
